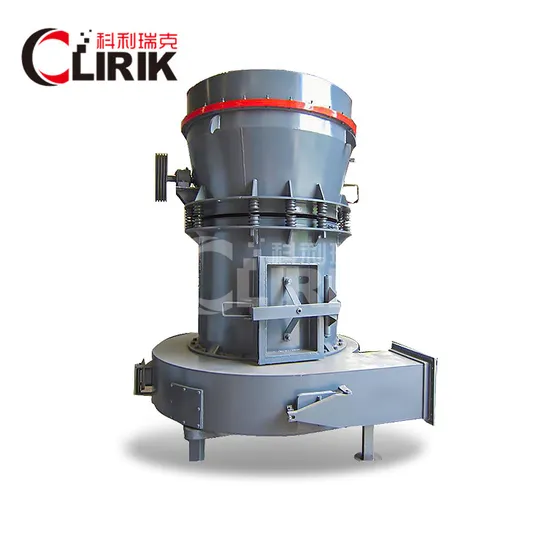

Calcium Carbonate Limestone Kaolin Gypsum Super Fine Powder Grinder for Gypsum Powder Production Line

Basic Info

Model NO.	YGM
Type	Raymond Mill
Motor Type	AC Motor
Motor Power	15KW
Rotationl Speed	20-22r/min
Application	Mine
Materials	Ore, Mining, Construction
Condition	New
Warranty	1 Year
After-sales Service	Technical Support
Raymond Mill Color	as Request
Raymond Mill Warranty	1 Year
Raymond Mill After Sales	Engineers Abroad Available
Raymond Mill Roller No.	3-6 PCS
Raymond Mill Roller Diameter	260-440
Raymond Mill Customized	Available
Raymond Mill Fineness	30-425 Mesh
Raymond Mill Capacity	1-20 T/H
Raymond Mill Ring Diameter	780-1600mm
Raymond Mill for Sale Power	35.7-275
Transport Package	Moistureproof, Antirust, Seaworthy
Specification	CE, SGS, ISO9001
Trademark	clirik
Origin	Shanghai, China
HS Code	84742090
Production Capacity	100 Sets Per Month

Product Description

Product Overview

Features of GGBS/GGBFS/GBFS raymond mill:

1. High pressure spring design.2. Smoothly vibration reduce design3. Convenient vane adjust design.4. The machine has a strong material applicability, which suits for many kinds of material whose Moh's hardness is less than 9.3.5. Grinding device adopts superimposed multistage seal, sealed performance is good.



Product description of GGBS/GGBFS/GBFS raymond mill:Clirik raymond mill is suitable for processing various non-flammable and non-explosive mineral materials with Moh's hardness less than 9.3 and humidity less than 6%, it is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc, . The granularity of the finished powder size can be adjusted between 50 and 325 mesh (315-45 micron). Examples of processing materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic, iron ore, carborundum, bauxite, rock phosphate, coal and other materials, total about 400 kinds of materials.Working principle of GGBS/GGBFS/GBFS raymond mill:Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, and are separated and collected there. They are discharged at the discharging valve to become finished products; The airflow is sucked to the blower by return pipe on the top of cyclone collector. The whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.technical specifications

Model	Roller			Ring		FeedingSize(mm)	FinishedSize(mm)	MotorPowder(KW)	Capacity(t/h)	OverallDimension(mm)
	quantity(piece)	Diameter(mm)	Height(mm)	Inner Diameter(mm)	Height(mm)
YGM7815	3	260	150	780	150	15	0.613-0.033	35.7	1--3	4300*3500*5100
YGM8314	3	270	140	830	140	20	0.613-0.033	48	1.2-4.6	5300*4100*5200
YGM9517	4	310	170	950	170	25	0.613-0.033	79.5	2.1-5.6	7100*5900*7900
YGM4121	5	410	210	1280	210	30	0.613-0.033	157.5	2.8-10.5	9200*7250*9700
MTM1600	6	440	270	1600	270	35	0.613-0.033	275	5--20	12550*5700*8350

Other Products offered

Ultrafine vertical Roller Mill	Micro Powder Grinding Mill	Coating Machine
Finished Size: 600-4500(mesh) Capacity: 3-20(t/h) Pass rate: D50 2 micron	Finished Size:300-2500(mesh) Capacity:0.5-45(t/h) Pass rate: D97 5 micron	Used to stone powder modification machine

Company Profile



FAQ

1. What are advantages of your Raymond mill?

-The main advantage of our Raymond mill over other kinds of mills is that you can grind a friable or crystalline material to 5 - 47 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.

2. Can you guarantee the quality of your products?---We have passed CE&ISO9001:2008, and our Raymond mills have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.

Inquiry Service

More details we needed for sending you more suitable quotation, 1. What kind of raw material do you want to process?2. What is the capacity per hour do you need?3. What is the raw material input size?4. What is the finished size you required? Any inquiries of our Raymond mill will be highly regard and we will give you the best quotation ASAP. Your satisfaction is our final ann forever pursuit. Please fill in your need products and your message and do not forget email and/or phone if you like to be contacted. We look forward to your inquiries!
